Features
- Drop-in replacement for obsolete SCSI drives
- 50-pin Narrow 8-bit Single-Ended (SE) Ultra SCSI interface
- Hot-swap Removable CFast
- Built-in debug monitor for diagnostics and updates to firmware
- Standard 3.5” form factor mechanically compatible with 3.5” 1.625” high SCSI tape drives
- Transfer rates up to 20 MB/s
- Capacities up to 1TB
- Emulations for various SCSI Tape drives
- Extended temperature option
- SCSI termination can be enabled within the unit
- CFast with write-protect switch available
- ROHS Compliant
- SCSI ID selection 0 – 7
- US-Based Engineering and Manufacturing
- In-house Technical Support

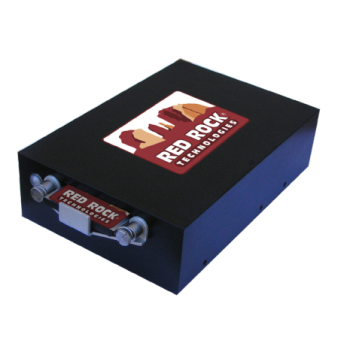

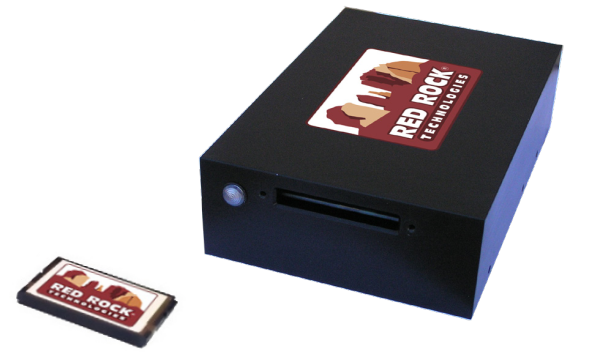

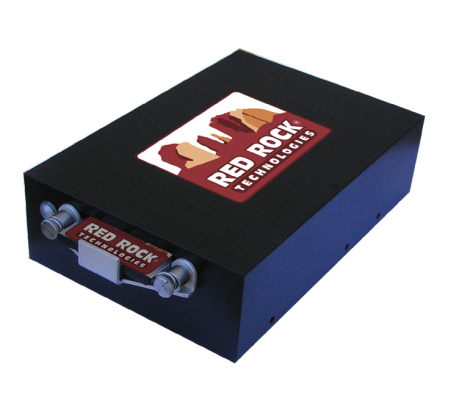

3.5” SCSI 50-Pin Narrow with Removable CFast for Tape Drive Replacements uses a proprietary FPGA-based design that provides a long-term solution for the replacement of obsolete SCSI DAT drives; HP DDS, Tandberg SLR, DEC TLZ. Mechanically compatible with 3.5” 1.625” high DAT drives. The design provides a transparent interface from the SCSI bus to a COTS CFast card. Custom firmware is provided for SCSI systems that require specific SCSI command responses, capacities, or sector sizes. A built-in debug monitor can be used to diagnose issues and update firmware.
Datasheet 35SCSI-SN-R-CFast-DAT
