Features
- PMC PCI 32-bit interface at 33MHz per IEEE 1386-2001
- Transfer rates up to 133 MB/s
- Wide range of COTS 1.8” SATA options
- Capacities up to 2TB
- Air cooled
- SSD secured by rugged retainer clip
- Compatible with all SBCs with a PMC slot
- Meets PMC IEEE 1386-2001 component height requirements
- 3.3V and 5V PCI interface compliant
- ROHS compliant

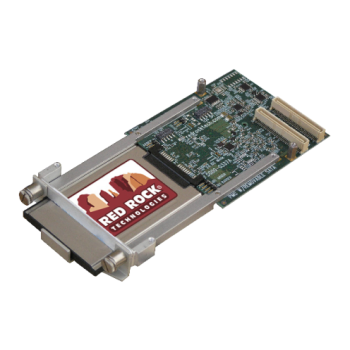

PMC Removable 1.8” SATA SSD Module is a PMC mezzanine storage module with a 32-bit PCI interface that supports a removable 1.8” solid state drive (SSD). Provides boot drive and/or disk storage for VPX, VME, cPCI, and ATCA single board computers (SBCs) with PMC Slot.
Datasheet PMC-18S-R
