Features
- XMC PCIe Gen 3x4 interface per VITA 42.3
- Transfer rates up to 3000 MB/s (0 to 70C), 1500MB/S (-40 to 85C)
- Capacities up to 16TB (0 to 70C) and 8TB (-40 to 85C)
- Removable SSD module connectors rated for 100,000 mating cycles
- Air cooled
- Wide range of COTS NVME M.2 SSD options
- Meets XMC VITA 42 height requirements
- –X version rated for -40ºC to 85ºC
- Military erase, FIPS140-2, FIPS197, TCG Opal options
- ROHS compliant

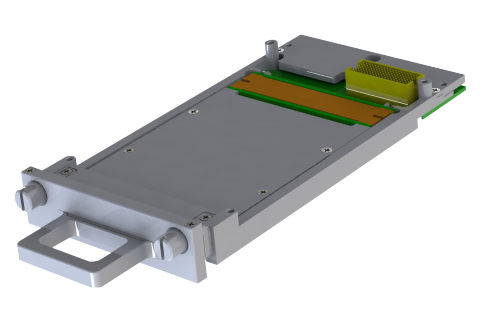

XMC with Removable NVMe SSD Module is a mezzanine storage module that uses PCI Express interface for two M.2 NVME SSDs contained in a removable module. Provides boot drive and/or disk storage for VPX, VME, cPCI and ATCA single board computers (SBCs) with XMC Slot.
The removable SSD module connectors are rated for 100,000 mating cycles to support frequent insertions/removals.
Datasheet XMC-R-A
