Features
- Capacities up to 32TB (2 x 16TB)
- 3940 MB/S transfer rates
- 100,000 mating cycles
- Removable module with COTS NVMe SSDs
- Two OpenVPX Fat Pipe (FP) PCIe x4 interfaces
- 100,000 mating cycles
- VITA 65 Slot Profiles (SOSA Aligned):
• SLT6-PAY-4F2Q1H4U1T1S1S1TU2U2T1H-10.6.4-n
• VPX P2 EP00-EP03
• VPX P5 EP16-EP19
- VITA 46, 47, 48, 65
- Boot and/or storage disk
- Air cooled
- Military erase options
- FIPS140-2, FIPS197, TCG Opal options
- Option for thumbscrews to remove drive module without tools
- Requires only +12V and +3.3V Aux power

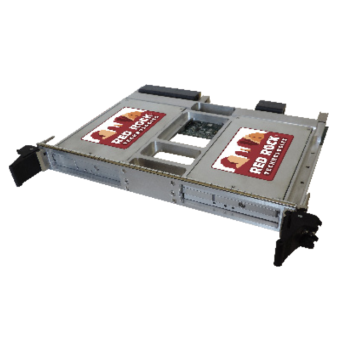

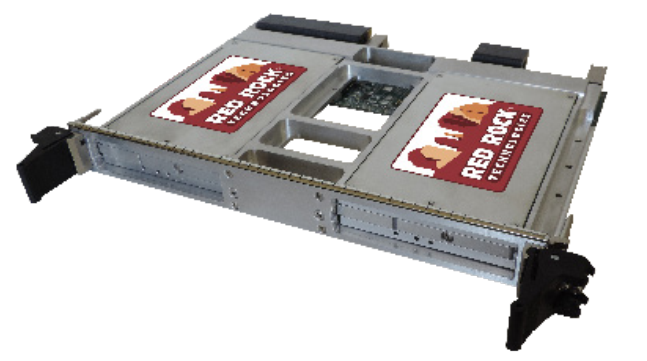

The 6U VPX Air Cooled Carrier with PCIe Interface and removable NVME SSD Modules is for applications that require the frequent removal of SSD, fast transfer rates, and large capacities. It consists of two components: the 6U VPX carrier board with PCI Express (PCIe) interface to VPX backplane that mounts in one slot of 6U VPX chassis, and the removable NVMe SSD modules. The connectors between the drive module and the carrier are rated for 100,000 mating cycles to support frequent insertions and removals.
The NVMe SSD module can use any COTS NVMe Solid State Drive (SSD) providing capacities up to 32TB (16TB per drive module) and transfer rates of up to 3940 MB/S.
Datasheet 6UVPX-NVMe-R-A
