Features
- XMC PCIe Gen 2x1 interface per VITA 42.3
- Transfer rates up to 500 MB/s
- CFast capacities up to 1TB
- Conduction cooled
- Wide range of COTS CFast options
- CFast secured by rugged retainer clip
- High-performance SATA3 transfer rates. Backwards compatible with SATA1/2
- Compatible with all SBCs with XMC slot
- Meets XMC VITA 42 height requirements
- –X version rated for -40ºC to 85ºC
- CFast with write protect switch available
- Front panel activity LED
- ROHS compliant

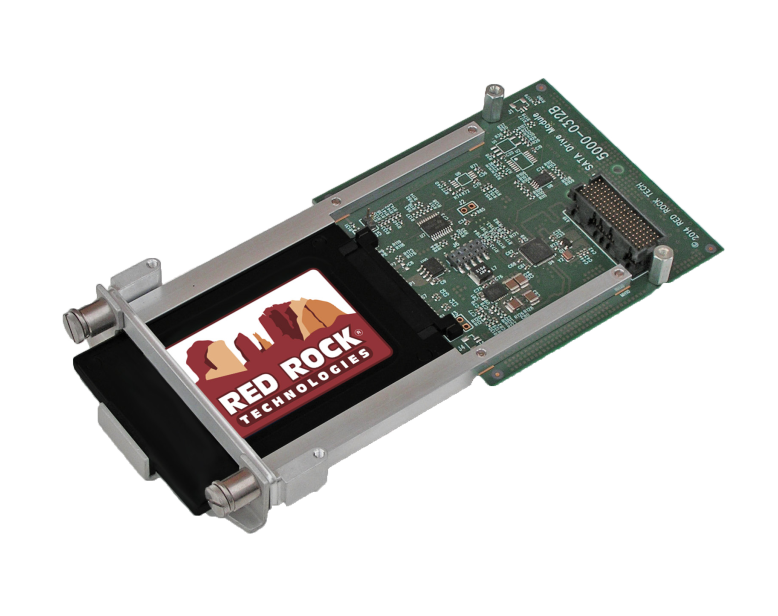

XMC CFast Module: Conduction Cooled is a mezzanine storage module with a PCI Express SATA 3 controller that supports one fixed CFast. Provides boot drive and/or disk storage for VPX, VME, cPCI, and ATCA single board computers (SBCs) with XMC Slot. CFast is the same form factor as Compact Flash but with a SATA interface, thus providing faster throughput.
Datasheet XMC-18S-R
