Features
- XMC PCIe Gen 2x1 interface per VITA 42.3
- Transfer rates up to 500 MB/s
- CFast capacities up to 1TB
- CFast connectors rated for 10,000 mating cycles
- Air cooled
- Wide range of COTS CFast options
- CFast secured by rugged retainer clip
- High-performance SATA3 transfer rates. Backwards compatible with SATA1/2
- Compatible with all SBCs with XMC slot
- Meets XMC VITA 42 height requirements
- –X version rated for -40ºC to 85ºC
- CFast with write protect switch available
- Front panel activity LED
- ROHS compliant

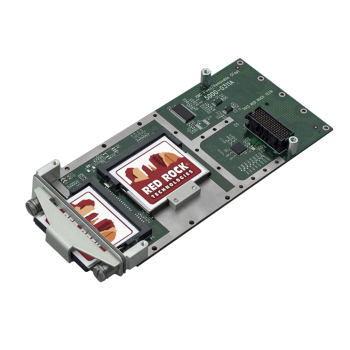

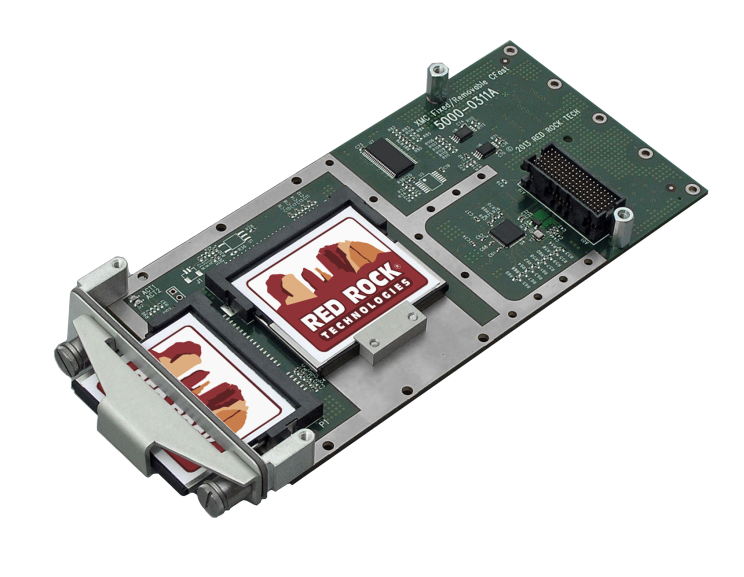

XMC Fixed/Removable CFast Module: Air Cooled is a mezzanine storage module with a PCI Express SATA 3 controller that supports one fixed and one removable CFast. Provides boot drive and/or disk storage for VPX, VME, cPCI, and ATCA single board computers (SBCs) with XMC Slot. CFast is the same form factor as Compact Flash but with a SATA interface, thus providing faster throughput. The CFast connectors are rated for 10,000 mating cycles to support frequent insertions/removals.
Datasheet XMC-CFast-F-R-A
