Features
- Capacities up to 32TB (2 x 16TB)
- 3940 MB/S Transfer rates
- Removable SSD module
- Two OpenVPX Fat Pipes (FP) PCIe x4 interface
- 100,000 mating cycles
- VITA 65 Slot Profi les (SOSA Aligned):
• 6U profi les using P2 EP00-EP03 and P5 EP16-EP19
• Other pipes available upon request
- VITA 46, 47, 48, 65
- Boot and/or storage disk
- Conduction cooled
- COTS NVMe SSDs
- Military erase options
- FIPS140-2, FIPS197, TCG Opal options
- No Tools option with easily removable thumbscrews
- Requires only +12V and +3.3V Aux power
- Rugged design

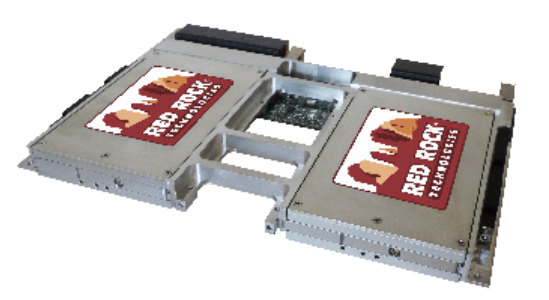

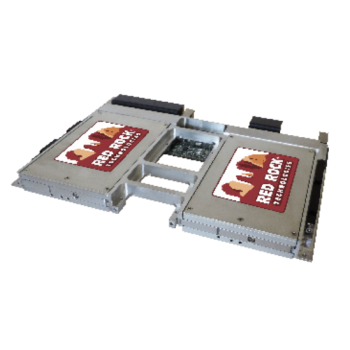

The 6U VPX Conduction Cooled Carrier with PCIe Interface and removable NVME SSD Module is for applications that require the frequent removal of SSD, fast transfer rates and large capacities. It consists of two components: the 6U VPX carrier board with PCI express (PCIe) interface to VPX backplane that mounts in one slot of 6U VPX chassis and the removable NVMe SSD module. The connectors between the drive module and the carrier are rated for 100,000 mating cycles to support frequent insertions and removals.
The NVMe SSD module can use any COTS NVMe Solid State Drive (SSD) providing capacities up to 32TB (16TB per drive module) and transfer rates of up to 3940 MB/S.
Datasheet 6U VPX-NVMe-R-C
