Features
- Capacities up to 16 TB
- 3940 MB/S Transfer rates
- Removable SSD module
- OpenVPX Fat Pipe (FP) PCIe x4 interface
- 100,000 mating cycles
- VITA 65 Slot Profiles:
• SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11
• VPX P1 EP00-EP03 OR
• VPX P1 EP04-EP07
• SLT3-PER-1F-14.3.2
- VITA 46, 47, 48, 65
- Boot and/or storage disk
- Conduction cooled
- COTS NVMe SSDs
- Military erase options
- FIPS140-2, FIPS197, TCG Opal options
- Option for thumbscrews to remove drive module without tools
- PC kit available to connect drive module to PC

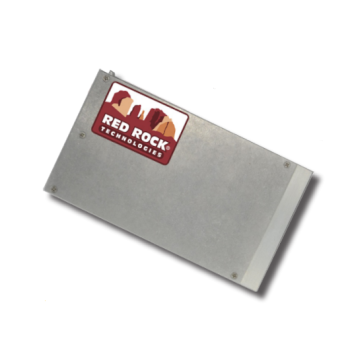

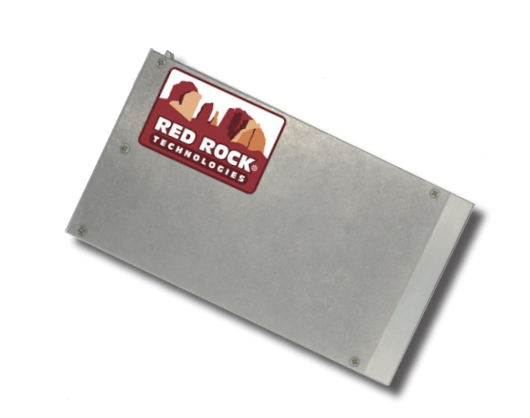

The 3U VPX Conduction Cooled Carrier with PCIe Interface and removable NVME SSD MODULE is for applications that require the frequent removal of SSD, fast transfer rates and large capacities. It consists of two components: the 3U VPX carrier board with PCI express (PCIe) interface to VPX backplane that mounts in one slot of 3U VPX chassis and the removable NVMe SSD module. The connectors between the drive module and the carrier are rated for 100,000 mating cycles to support frequent insertions and removals.
The NVMe SSD module can use any COTS NVMe Solid State Drive (SSD), providing capacities up to 16TB and transfer rates of up to 3940 MB/S. Options for FIPS140-2, FIPS197, TCG Opal, and military erase.
Datasheet 3UVPX-NVMe-R-C
