Features
- Capacities up to 20TB
- 600MB/S transfer rates
- Removable SSD module
- SATA3 (SATA600) interface to VPX backplane
- 100,000 mating cycles
- VITA 65 Slot Profiles:
• SLT3-STO-1U-16.5.1
- VITA 46, 47, 48, 65
- Boot and/or storage disk
- Conduction cooled
- Compatible with SATA 1, 2
- COTS 2.5” SATA SSDs
- Military erase, FIPS140-2, FIPS197, TCG Opal options
- Option for thumbscrews to remove drive module without tools
- VPX Rear Transition module available for SATA interface

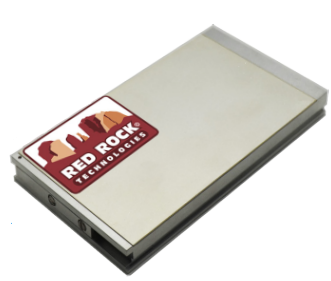

The 3U VPX Conduction Cooled Carrier with SATA Interface and removable SSD module is for applications that require the frequent removal of SSD, fast transfer rates and large capacities. It consists of two components: the 3U VPX carrier board with SATA interface that mounts in one slot of 3U VPX chassis and the removable SATA SSD module. The connectors between the drive module and the carrier are rated for 100,000 mating cycles to support frequent insertions and removals.
The drive module can use any COTS 2.5” SATA Solid State Drive (SSD) providing capacities up to 20TB and transfer rates of up to 600MB/S. Options for FIPS140-2, FIPS197, TCG Opal, and military erase.
Datasheet 3UVPX-SATA-R-C
