Features
- Capacities up to 20TB
- 600MB/S transfer rates
- SATA3 (SATA600) interface to VPX backplane
- VITA 65 Slot Profiles:
• SLT3-STO-1U-16.5.1
- VITA 46, 47, 48, 65
- Boot and/or storage disk
- Air cooled
- Compatible with SATA1, 2
- COTS 2.5” SATA SSDs
- Military erase options
- FIPS140-2, FIPS197, TCG Opal options
- Option for removable CFast port
- VPX Rear Transition module available for the SATA interface

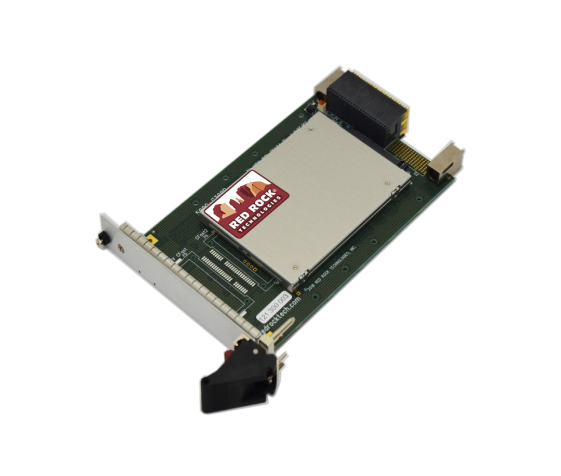

The 3U VPX Air Cooled SSD module with SATA Interface to VPX backplane adds SSD to a VPX
system using one 3U VPX slot with COTS 2.5” SATA Solid State Drives (SSDs), providing capacities up to 20TB and transfer rates of up to 600MB/S. Options for FIPS140-2, FIPS197, TCG Opal, and military erase.
Optional removable CFast port on front panel with CFast secured by a rugged retainer clip. CFast is the same form factor as Compact Flash but has a SATA interface for faster speeds.
Datasheet 3UVPX-SATA-A
