Features
- Capacities up to 20 TB
- 600 MB/S Transfer rates
- Removable SSD module
- OpenVPX Ultra Thin Pipe (UTP) PCIe x1 interface
- 100,000 mating cycles
- VITA 65 Slot Profiles:
• SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11
• VPX P1 EP00
• SLT3-PER-1F.14.3.2
- VITA 46, 47, 48, 65
- Boot and/or storage disk
- Air cooled
- COTS 2.5” SATA SSDs
- SATA3 (SATA600) Interface to SSD
- Military erase, FIPS140-2, FIPS197, TCG Opal options
- Option for thumbscrews to remove the drive module without tools
- IDE or AHCI Mode
- Desktop version available to connect the drive module to the PC

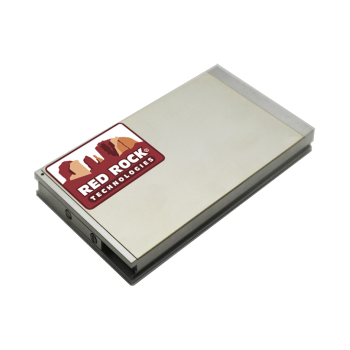

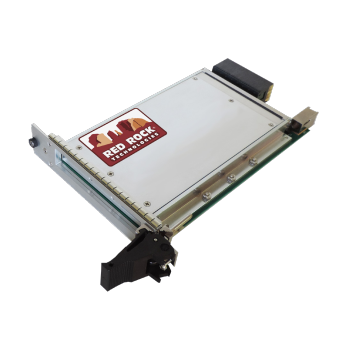

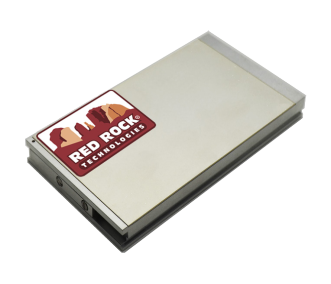

The 3U VPX Air Cooled Carrier with PCIe Interface and Removable SSD Module is designed for applications that require the frequent removal of SSDs, fast transfer rates, and large capacities. It consists of two components: the 3U VPX carrier board with PCI express (PCIe) interface that mounts in one slot of 3U VPX chassis and the removable SATA SSD Module. The connectors between the drive module and the carrier are rated for 100,000 mating cycles to support frequent insertions and removals. The drive module can use any COTS 2.5” SATA Solid State Drive (SSD) providing capacities up to 20TB and transfer rates of up to 600MB/S. Options for FIPS140-2, FIPS197, TCG Opal, and military erase.
Datasheet 3UVPX-PCIe-R-A
