Features
- Capacities up to 20TB
- 600MB/S transfer rates
- OpenVPX Thin Pipe (TP) PCIe x1 interface
- VITA 65 Slot Profiles:
- SLT3-PER-1T-14.3.3
- VITA 46, 47, 48, 65
- Boot and/or storage disk
- Air cooled
- COTS 2.5” SATA SSDs
- SATA3 (SATA600) Interface to SSD
- Military erase, FIPS140-2, FIPS197, TCG Opal options
- IDE or AHCI Mode
- Option for removable CFast port

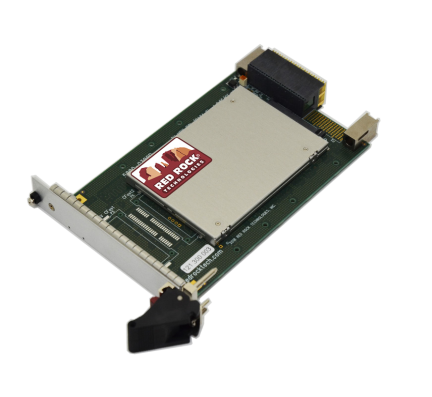

The 3U VPX AIR COOLED SSD MODULE with PCIe Interface to VPX backplane adds SSD to a VPX
system using one 3U VPX slot with COTS 2.5” SATA Solid State Drives (SSDs) providing capacities up
to 20TB and transfer rates of up to 600MB/S. Options for FIPS140-2, FIPS197, TCG Opal, and military
erase.
Optional removable CFast port on front panel with CFast secured by a rugged retainer clip. CFast is the
same form factor as Compact Flash, but has a SATA interface for faster speeds.
Datasheet 3UVPX-PCIe-A
