Features
- Capacities up to 40TB (2x20TB)
- 200 MB/s transfer rates
- SATA interfaces via VME P0 or P2
- Removable SSD modules
- Boot and/or storage disk
- COTS 2.5” SATA SSDs
- Military erase options
- FIPS 140-2, FIPS 197, TCG Opal options
- P2 adapter with SATA interface available

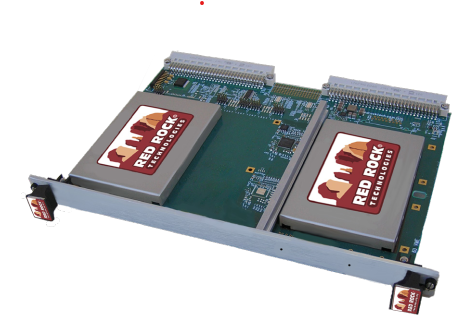

6U VME SSD Module with SATA Interface 6U VME SSD Module with SATA Interface adds one or two HDDs or SSDs to a VME system using one VME slot. The drive module can use any COTS 2.5” SATA Solid State Drive (SSD) providing capacities up to 40TB (20TBx2) and transfer rates of up to 200MB/S. Options for FIPS140-2, FIPS197, TCG Opal, and military erase. Each drive has a separate SATA interface.
Datasheet 6UVME-SATA
