Features
- Capacities up to 40TB (2x20TB)
- 200 MB/s transfer rates
- SATA interfaces via VME P0 or P2
- Removable SSD modules
- Boot and/or storage disk
- 100,000 mating cycles
- COTS 2.5” SATA SSDs
- Military erase options
- FIPS 140-2, FIPS 197, TCG Opal options
- Option for thumbscrews to remove drive module without tools
- P2 adapter with SATA interface available

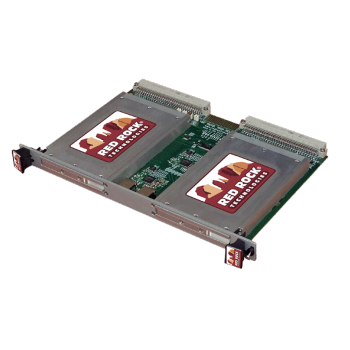

6U VME Carrier with SATA Interface and Removable is for applications that require the frequent removal of SSD, fast transfer rates and large capacities. It consists of two components: the 6U VME carrier board with SATA interface that mounts in one slot of 6U VME chassis and the removable SATA SSD Modules. The connectors between the drive module and the carrier are rated for 100,000 mating cycles to support frequent insertions and removals.
The drive module can use any COTS 2.5” SATA Solid State Drive (SSD) providing capacities up to 40TB (20TBx2) and transfer rates of up to 200MB/S. Options for FIPS140-2, FIPS197, TCG Opal, and military erase. Each drive has a separate SATA interface.SSD Modules
Datasheet 6UVME-SATA-R
