Features
- Drop-in replacement for obsolete SCSI drives
- 50-pin Narrow 8-bit Single-Ended (SE) Ultra SCSI interface
- Hot-swap Removable CFast
- Built-in debug monitor for diagnostics and updates to firmware
- Standard 5.25” form factor, mechanically the same as COTS SCSI MO drives
- Transfer rates up to 20 MB/s
- Capacities up to 1TB
- Extended temperature option
- SCSI termination can be enabled within unit
- CFast with write protect switch available
- ROHS compliant
- SCSI ID selection 0 – 7
- US-Based Engineering and Manufacturing
- In-house Technical Support

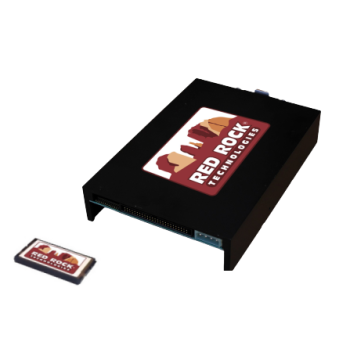

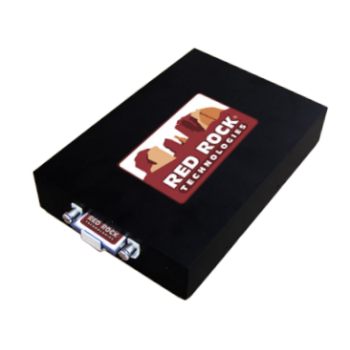

5.25” SCSI 50-Pin Narrow with Removable CFast uses a proprietary FPGA-based design that provides a long-term solution for replacement of obsolete SCSI floppy, tape (DAT), magneto optical (MO), CD, DVD and PC card drives. Designed to provide a mechanical form, fit, and function replacement for COTS 5.25” SCSI MO drives. The design provides a transparent interface from the SCSI bus to a COTS CFast card. Custom firmware is provided for SCSI systems that require specific SCSI command responses, capacities or sector sizes. A built-in debug monitor can be used to diagnose and update firmware.
Emulations for:
• SCSI fixed drive to replace hard drive or SSD
• SCSI Removable drive
• SCSI Magneto Optical (MO)
• SCSI DAT Tape
• SCSI Floppy
• SCSI CD, DVD
• SCSI PC Card
Datasheet 525SCSI-SN-R-CFast
