Features
- Drop-in replacement for obsolete SCSI drives
- 50-pin Narrow 8-bit Single-Ended (SE) Ultra SCSI interface

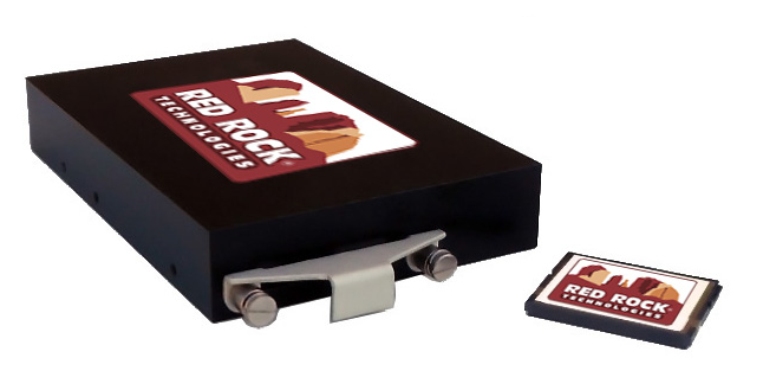

- Hot-swap Removable CFast
- Built-in debug monitor for diagnostics and updates to firmware
- Standard 3.5” form factor
- Transfer rates up to 20 MB/s
- Capacities up to 1TB
- Extended temperature option
- SCSI termination can be enabled within the unit
- Fast with a write-protect switch available
- ROHS Compliant
- SCSI ID selection 0 – 7
- US-Based Engineering and Manufacturing
- In-house Technical Support

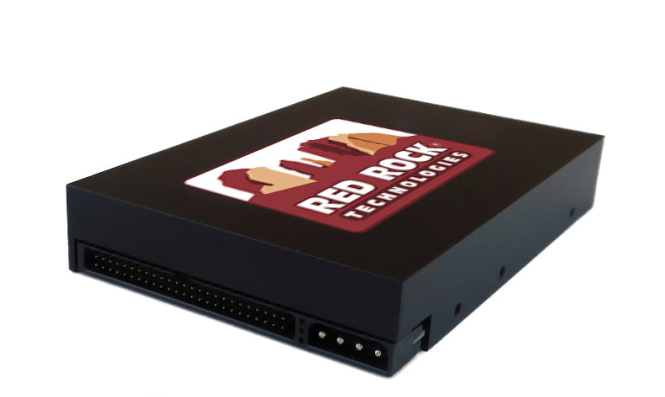

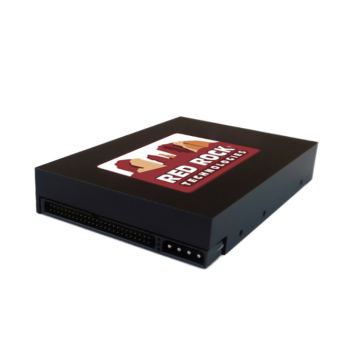

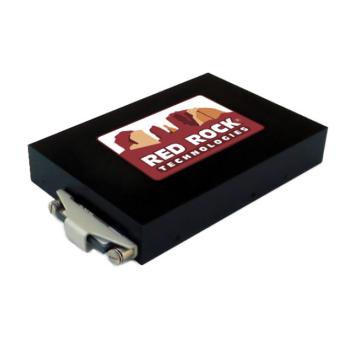

3.5” SCSI 50-Pin Narrow with Removable CFast uses a proprietary FPGA-based design that provides a long-term solution for the replacement of obsolete SCSI hard drives, SCSI SSD, SCSI Magneto Optical (MO), SCSI tape drive, SCSI Floppy drive, SCSI CD, DVD, DVD-RAM, and PC card drives. The design provides a transparent interface from the SCSI bus to a COTS CFast card. Custom firmware is provided for SCSI systems that require specific SCSI command responses, capacities, or sector sizes. A built-in debug monitor can be used to diagnose issues and update firmware.
Emulations for:
• SCSI fixed drive to replace hard drive or SSD
• SCSI Removable drive
• SCSI Magneto Optical (MO)
• SCSI DAT Tape
• SCSI Floppy,
• SCSI CD, DVD
• SCSI PC Card
Datasheet 35SCSI-SN-R-CFast
