Features
- Capacities up to 16 TB
- 500 MB/S Transfer rates
- Removable SSD module
- USB3 Interface
- 100,000 mating cycles
- 5.25” form factor
- Boot and/or disk storage
- COTS NVMe SSDs
- Military erase options
- FIPS140-2, FIPS197, TCG Opal options
- Option for thumbscrews to remove drive module without tools

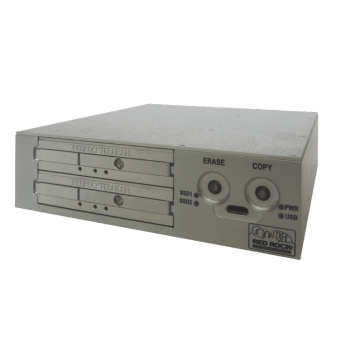

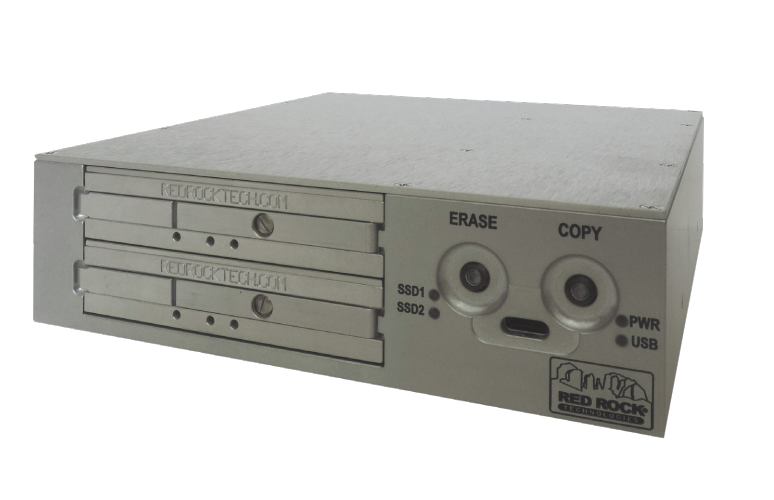

5.25” USB Enclosure for 2 Removable NVME SSD Modules is for applications that require the frequent removal of SSD, fast transfer rates, and large capacities. It consists of two components: the 5.25” enclosure with USB3 interface that has a USB to PCIe adapter chipset and the removable NVMe SSD modules. The connectors between the SSD modules and the enclosure are rated for 100,000 mating cycles to support frequent insertions and removals. The NVMe SSD module can use any COTS NVMe Solid State Drive (SSD), providing capacities up to 16TB and transfer rates of up to 500 MB/S. Options for FIPS140-2, FIPS197, TCG opal, and military erase secure.
Datasheet 525NVMe-R
